Installing a radio / CD player
My car still has its original 32-year old radio installed in the centrepiece of the facia.
In order not to interfere with the period detail of the facia, I decided to install
a CD player in the parcel shelve in the front passenger foot well.

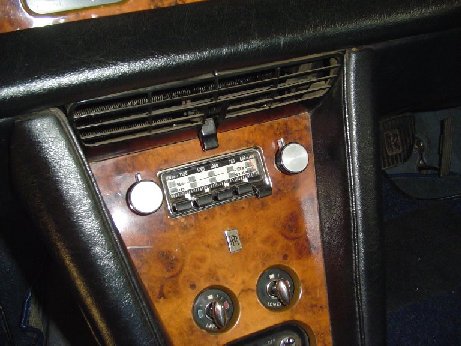

The original radio

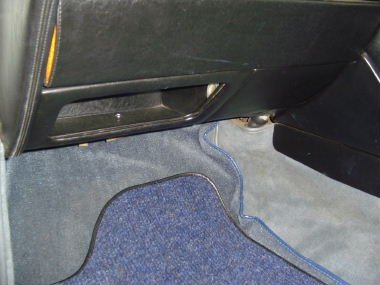

The parcel shelve in the passenger foot well seemed to be
an ideal position for the CD player

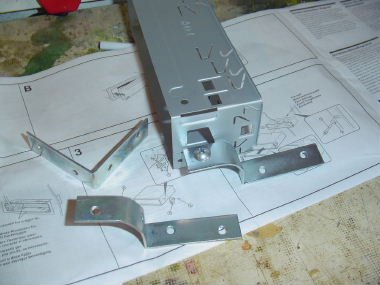

Using normal shelve brackets from the local hardware
store I produced custom brackets for the cradle.

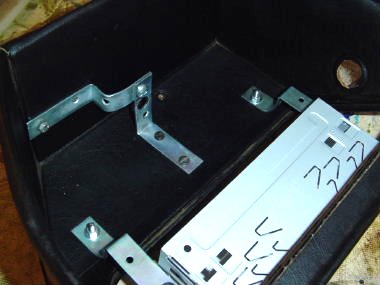

The cradle installed in the parcel shelve
As the wires were to run under the carpeting to the rear of the vehicle,
I decided to protect the wiring with a special plastic coil sleeve.

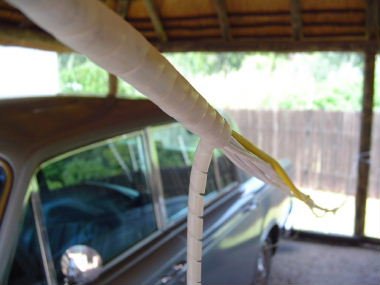

I strung the wiring loom up between two poles in the carport,
which made this task easier.

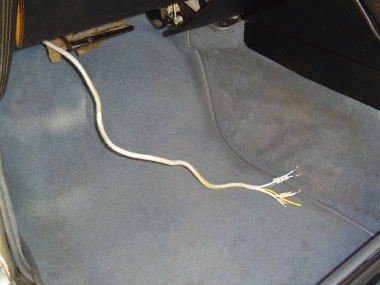

The completed wiring loom ready for CD player installation.
Cutting holes in the rear parcel shelve was not an option, so I installed

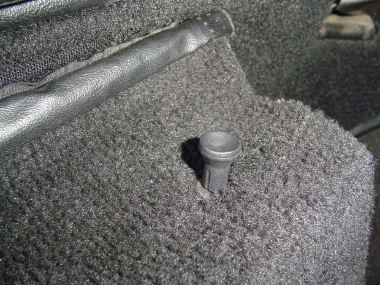

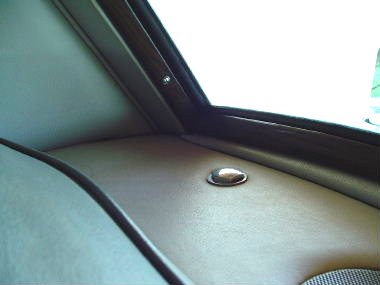

the speakers using the optional rear seatbelt mounting points.

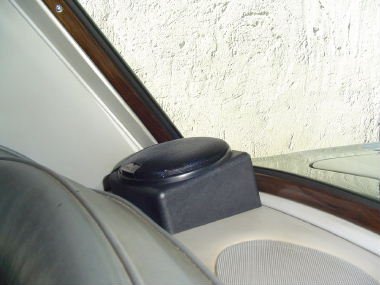

The installed speaker. Note the original radio speaker next to it.
As I did not want to interfere with the car's electrics, I powered the CD player
direct from the battery located in the boot (trunk) of the vehicle.
As an extra precaution I installed a cut-off switch to prevent
the CD player from draining the battery over time
when the vehicle is not in use.

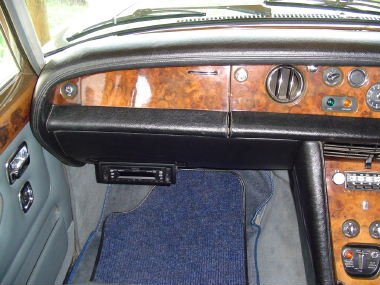

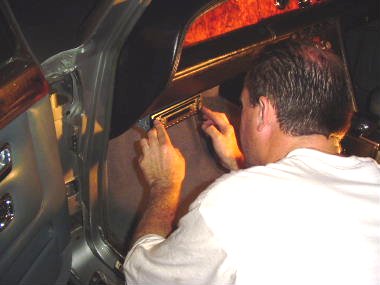

Finally installing the CD player.
