| Leaking

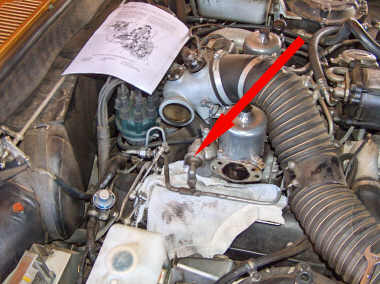

Carburettor Inlet Pipe |
| After noticing fuel leaking all over the floor I found that it was been pumped out of the carburettor inlet on the float chamber lid, where the filter is located. The leak was caused by a perished o-ring on the inlet. |
 |
 |

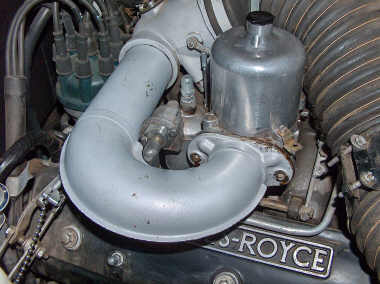

| The A-bank inlet
exposed after removing the air ducting assembly "elbow". The arrow indicates the exact location of the fuel leak. |

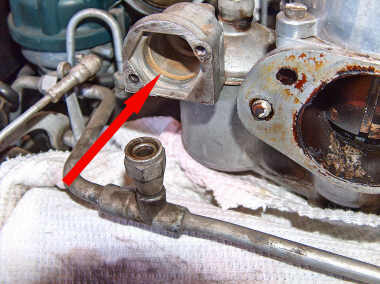

A
close-up picture of the location of the leak. |
 |
 |
| The fuel inlet and
fuel assembly. Note how the spring has compressed the filter. |

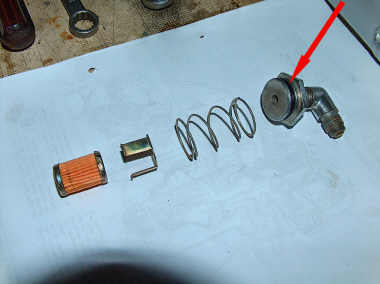

All cleaned up with
replacement filter and new o-ring (arrowed) |
 |
 |
| Job complete!
Remember to do both sides while you are at it. |
The fuel inlet and
filter assembly, clean and without leaks! |
